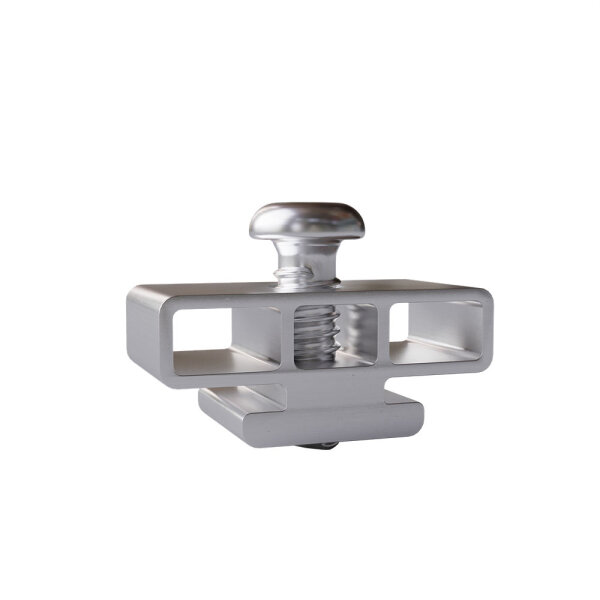

Prior PV locking clamp

SKU: AR-20251399
Category: Pitched roof systems
Manufacturers: Prior PV

Prior PV locking clamp: Reliable securing for cross-connected modules

The Prior PV locking clamp is specially designed for photovoltaic mounting systems and reliably prevents cross-connected modules from slipping. Thanks to a tightening torque of 10 Nm, it offers maximum holding power. High-quality workmanship for long-lasting stability. Secure it now!

This product is exempt from sales tax according to §12 paragraph 3 UStG if the conditions are met.

3,25 €

incl. 0% VAT , plus

Delivery time: 1 - 5 Workdays (DE - int. shipments may differ)

Please note the minimum purchase quantity of 2 Units.

Description
PDF (1)

Prior PV fixing clamp for cross-connection systems

Perfect stability for solar modules in cross-connection - the optimal addition to your PV substructure
Product details

The Prior PV fixing clamp was specially developed for PV mounting systems on pitched roofs with wooden rafters and tiled roofs. This high-quality clamp ensures secure fixing of the lower row of modules in cross-connection systems and prevents the photovoltaic modules from slipping. Thanks to the pre-assembled delivery, the fixing clamp is ready for use straight away.

Special features of the Prior PV fixing clamp

Ideal for cross-connection systems: The fixing clamp is perfectly matched to vertical support rails and ensures maximum stability for horizontally installed modules.
Exact height alignment: Enables precise horizontal adjustment of the first row of modules and creates a stable base for the entire assembly.
High-quality materials: Made from weather-resistant, corrosion-resistant aluminum for a long service life.
Easy to use: Is effortlessly pushed onto the vertical support rails and fixed with a recommended tightening torque of 10 Nm.
Universal compatibility: Suitable for the Prior PV mounting system as well as for all common framed solar modules with a frame height of 27-37 mm.

Area of application of the Prior PV fixing clamp

This fixing clamp is an essential component for the safe installation of cross-connected solar systems. It provides reliable anti-slip protection for the lowest row of modules and forms the basis for a stable installation. It ensures optimal hold, especially on pitched roofs with a slope of up to 60° and for building heights of up to 20 m.

Technical specifications of the Prior PV fixing clamp

Material: Natural-colored aluminum
Compatibility: Designed for vertical support rails of the Prior PV mounting system
Recommended tightening torque: 10 Nm
Suitable for framed modules: Frame height of 27-37 mm
Suitable for: Roof slopes up to 60° and building heights up to 20 m
Complies with standards: Compliant with DIN EN 1991-1 for wind and snow loads

Installation advantages of the Prior PV fixing clamp

The installation of the fixing clamp is time-saving and uncomplicated: It is pushed onto the vertical support rails under the first row of modules, aligned exactly horizontally and then secured with the recommended torque. This provides a reliable base for the other PV modules and prevents them from slipping accidentally.

Prior PV - quality and safety

Like all Prior PV components, the fixing clamp also impresses with its highest quality workmanship and reliable functionality. It meets all relevant material tests and complies with the strict specifications of the German Institute for Building Technology. Thanks to the general building approval, you benefit from maximum safety and long-term stability for your photovoltaic system.
Rely on the Prior PV fixing clamp for professional installation in the cross-connection system - the perfect choice for a safe and long-lasting solar installation.

The Prior PV fixing clamp at a glance:

Manufacturer:	Prior PV
product series:	Prior PV pitched roof system
Manufacturer’s warranty:	10 years
material:	Aluminium
Colour (KG):	Silver
Type of use:	Pitched roofs
Module alignment:	Landscape format Portrait format
Module frame thickness:	27-37 mm

Montageanleitung Prior PV Schrägdach
