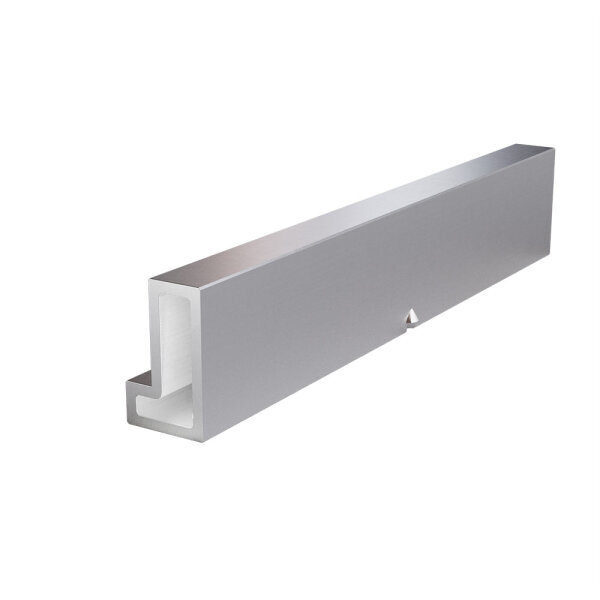

Prior PV profile rail connectors for plugging

SKU: AR-20251396
Category: Pitched roof systems
Manufacturers: Prior PV

Flexible extension of profile rails with expansion joints

Modern connector for profile rails in PV mounting systems on pitched roofs. The tool-free plug-in assembly enables quick and uncomplicated installation. Perfect for flexible rail extensions with expansion joints.

Your advantages with the Prior PV plug-in profile rail connector:

Simple and quick assembly without tools
Precise alignment thanks to integrated center stop
Full compatibility with the Prior PV support rail system
Robust design made of high-quality aluminum

Order now and optimize your photovoltaic installation!

This product is exempt from sales tax according to §12 paragraph 3 UStG if the conditions are met.

3,05 €

incl. 0% VAT , plus

Delivery time: 1 - 5 Workdays (DE - int. shipments may differ)

Please note the minimum purchase quantity of 2 Units.

Description
PDF (1)

Prior PV connector for profile rails - The reliable solution for your photovoltaic installation

The Prior PV connector for profile rails offers an optimal solution for the quick and secure connection of support rails in your photovoltaic system. Thanks to the innovative plug-in technology, it enables simple and time-saving installation without tools, while at the same time ensuring high stability. It is an important component of the Prior PV pitched roof system.

Efficient construction for maximum performance:

Tool-free plug-in connection - no screwing necessary
Central stop for exact positioning
Compatible with all Prior PV support rail systems
Symmetrical design for even load distribution
Robust aluminum construction for high stability

Versatile:

This connector is particularly suitable for loose connections of support rails when thermal expansion joints are required. The sophisticated design ensures that several rails can be precisely connected to one another, while at the same time maintaining the necessary expansion distances of at least 2 cm.

Simplest assembly:

Installation is straightforward: Push the connector into the first rail until it stops in the middle and then insert the second rail from the opposite side until it stops at the stop. The integrated stopper ensures that the position is perfect for even load distribution.

Durable and easy to maintain:

Sturdy aluminum construction for long durability
Resistant to corrosion and weather influences
Low maintenance thanks to tool-free assembly
Meets all relevant safety norms and standards

Technical properties:

Material: aluminum
Compatible with all Prior PV support rail systems
Suitable for both horizontal and vertical rail connections
Meets the requirements of DIN EN 1991-1 for wind and snow loads
Tested in accordance with general building authority approval

Important note on Safety:

During installation, ensure that an expansion joint is installed between the support rails every 12 meters. These joints must not be covered by PV modules to prevent unwanted stress in the structure.
The Prior PV connector for profile rails is the ideal choice for installers who rely on fast installation, high stability and long-lasting reliability. It is an indispensable part of the well-thought-out Prior PV mounting system and ensures a safe and permanent installation of your photovoltaic system.

Summary of the Prior PV connector for profile rails:

Manufacturer:	Prior PV
product series:	Prior PV pitched roof system
Manufacturer’s warranty:	10 years
material:	Aluminium
Colour (KG):	Silver
Type of use:	Pitched roofs
Module alignment:	Landscape format Portrait format
Module frame thickness:	27-37 mm

Installation instructions Prior PV pitched roof
